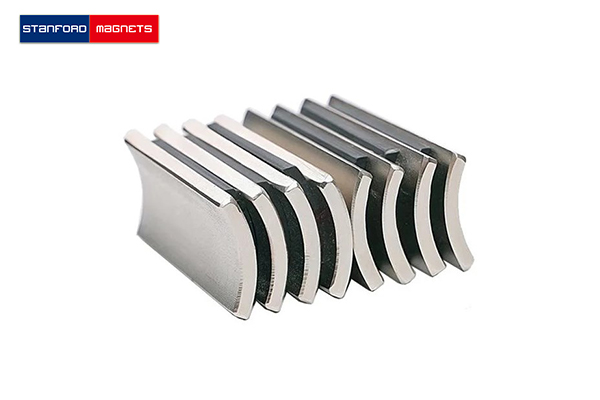

Neodymium Arc Magnets is a special shape of neodymium magnets. These magnets can be assembled together to a ring and stick to iron housing. They are used widely motor and generator applications. Neodymium arc magnets are designed to work at high temperature and have low weight lost in high speed rotating. Nickel is the most popular coating type we provide, we can also provide a variety of coating type, such as gold, Zinc, Epoxy etc.
Magnets Grade Available:
1. Magnets N-(N35, N38, N40, N42, N45, N48, N50), Max working Tempt 80°C;
2. Magnets M-(35M, 38M, 40M, 42M, 45M, 48M), Max working Tempt 100°C ;
3. Magnets H-(35H, 38H, 40H, 42H, 45H), Max working Tempt 120°C ;
4. Magnets SH-(30SH, 33SH, 35SH, 38SH, 40SH, 42SH), Max working Tempt 150°C;
5. Magnets UH-(28UH, 30UH, 33UH, 35UH, 38UH), Max working Tempt 180° C;
6. Magnets EH-(28EH, 30EH, 30EH, 33EH, 35EH) Max working Tempt 200° C;
7. Magnets AH-(30AH, 33AH) Max working Tempt 230°C.
Applications:
Sensors, motors, rotors, wind turbines, Wind Power Generators loudspeakers, magnetic hooks, magnetic holder, filters automobiles computers, MRI/Nuclear Magnetic Resonance (NMR), Magnetic Separators, Cleaning Machine, Pump machine, etc..
Specifications for your reference:
| Item | OR(Inch) | IR (Inch) | Length (Inch) | Angle | Grade |
|---|---|---|---|---|---|
| NA-1 | 3/4 (0.75) | 1/2 (0.5) | 1/4 (0.25) | 90o | N42 |
| NA-2 | 3/4 (0.75) | 1/2 (0.5) | 1/2 (0.5) | 90o | N42 |
| NA-3 | 3/4 (0.75) | 1/2 (0.5) | 3/4 (0.75) | 90o | N42 |
| NA-4 | 3/4 (0.75) | 1/2 (0.5) | 1 (1.00) | 90o | N42 |
| NA-5 | 1 (1.00) | 1/2 (0.5) | 1/4 (0.25) | 90o | N42 |
| NA-6 | 1 (1.00) | 1/2 (0.5) | 1/2 (0.5) | 90o | N42 |
| NA-7 | 1 (1.00) | 1/2 (0.5) | 3/4 (0.75) | 90o | N42 |
| NA-8 | 1 (1.00) | 1/2 (0.5) | 1 (1.00) | 90o | N42 |
| NA-9 | 1 (1.00) | 3/4 (0.75) | 1/4 (0.25) | 90o | N42 |
| NA-10 | 1 (1.00) | 3/4 (0.75) | 1/2 (0.5) | 90o | N42 |
| NA-11 | 1 (1.00) | 3/4 (0.75) | 3/4 (0.75) | 90o | N42 |
| NA-12 | 1 (1.00) | 3/4 (0.75) | 1 (1.00) | 90o | N42 |
